Roll Bar Brackets

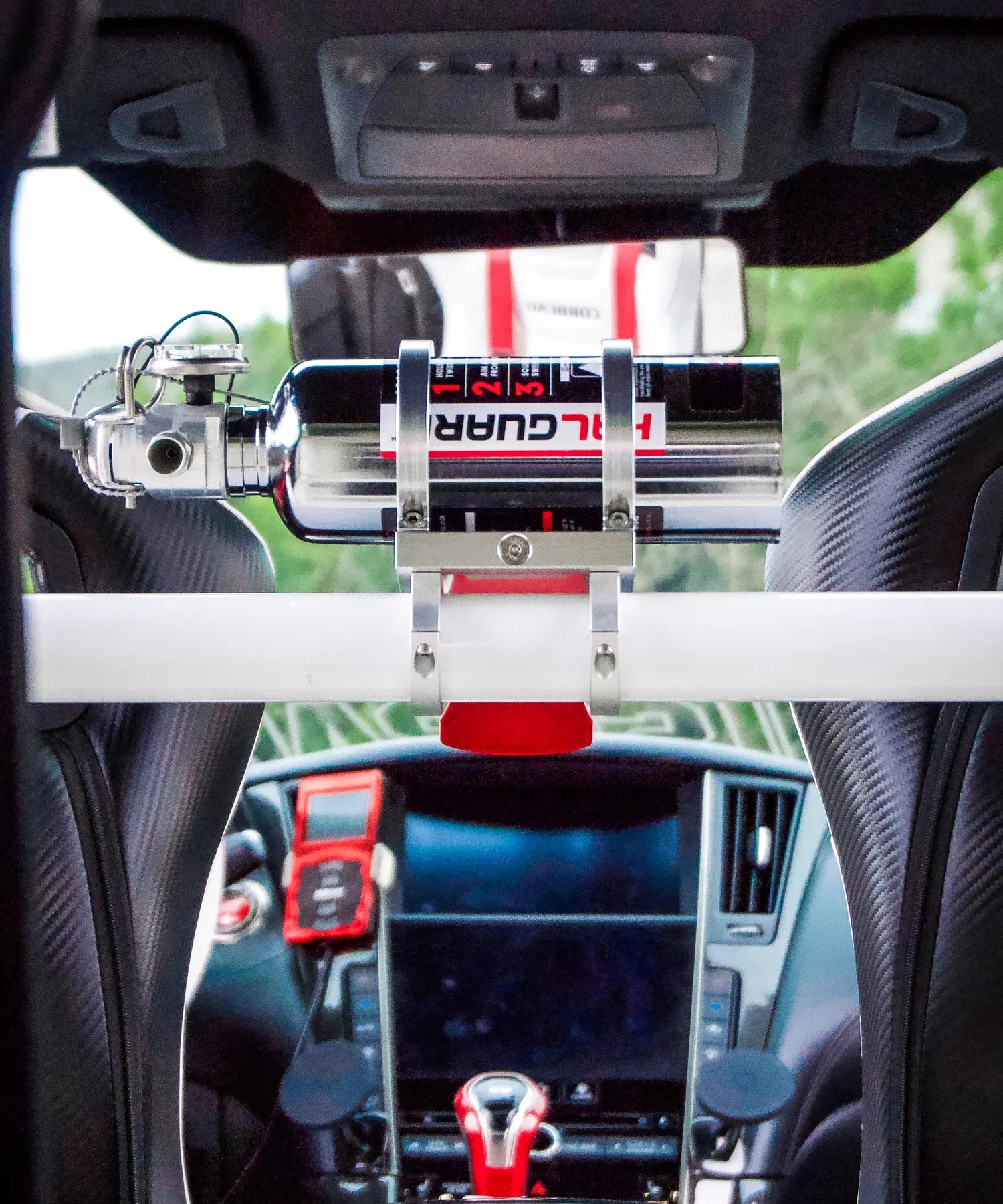

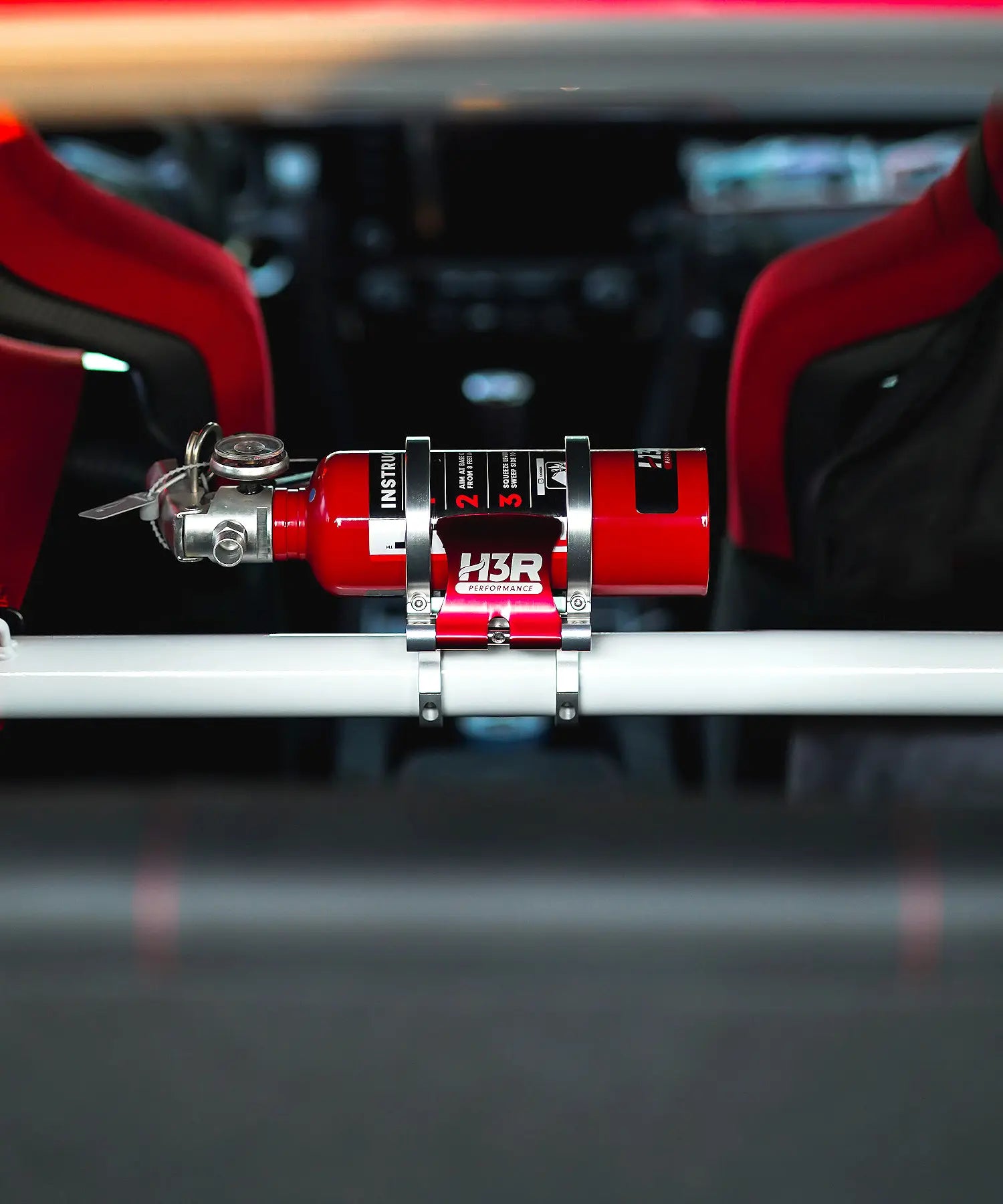

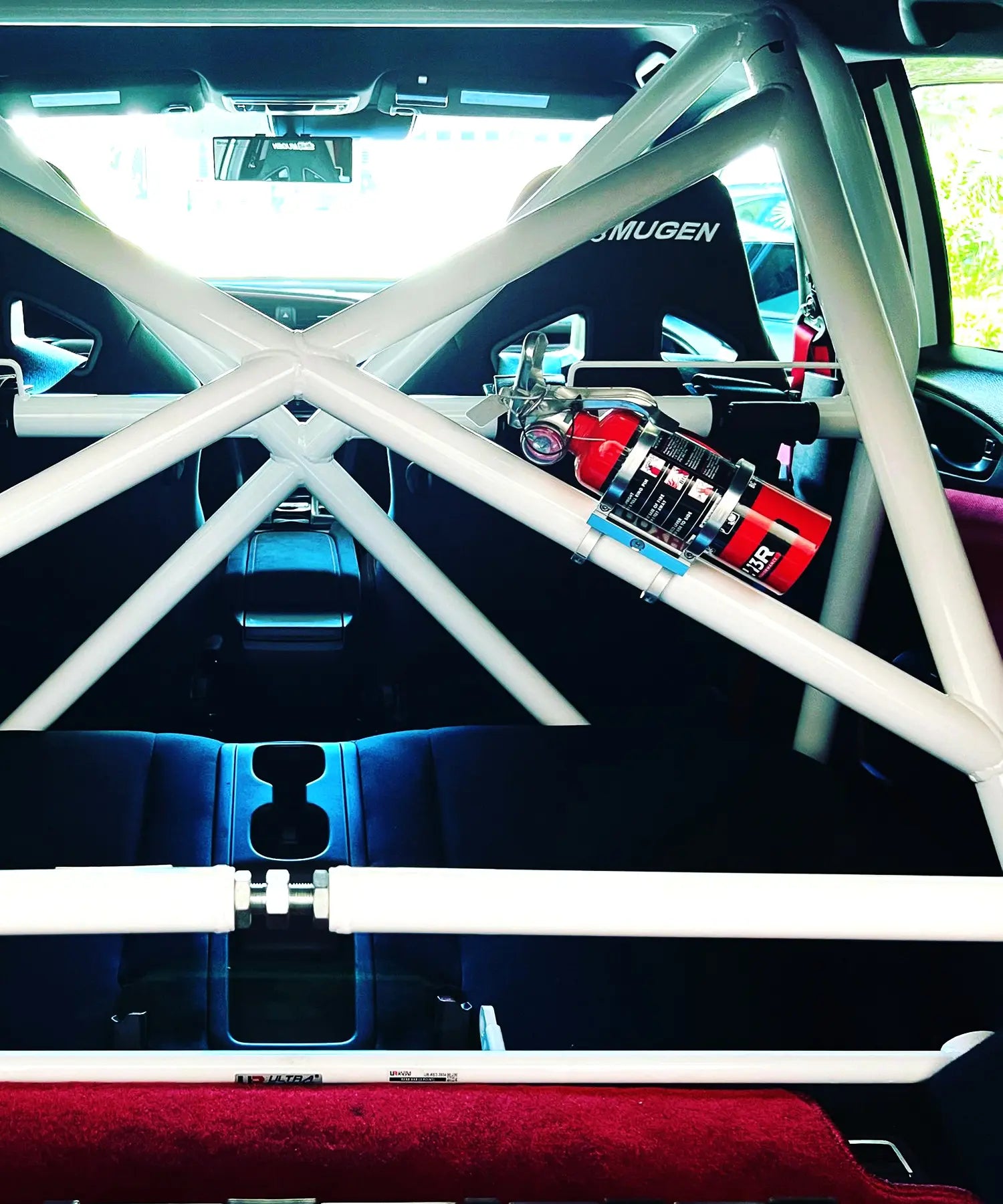

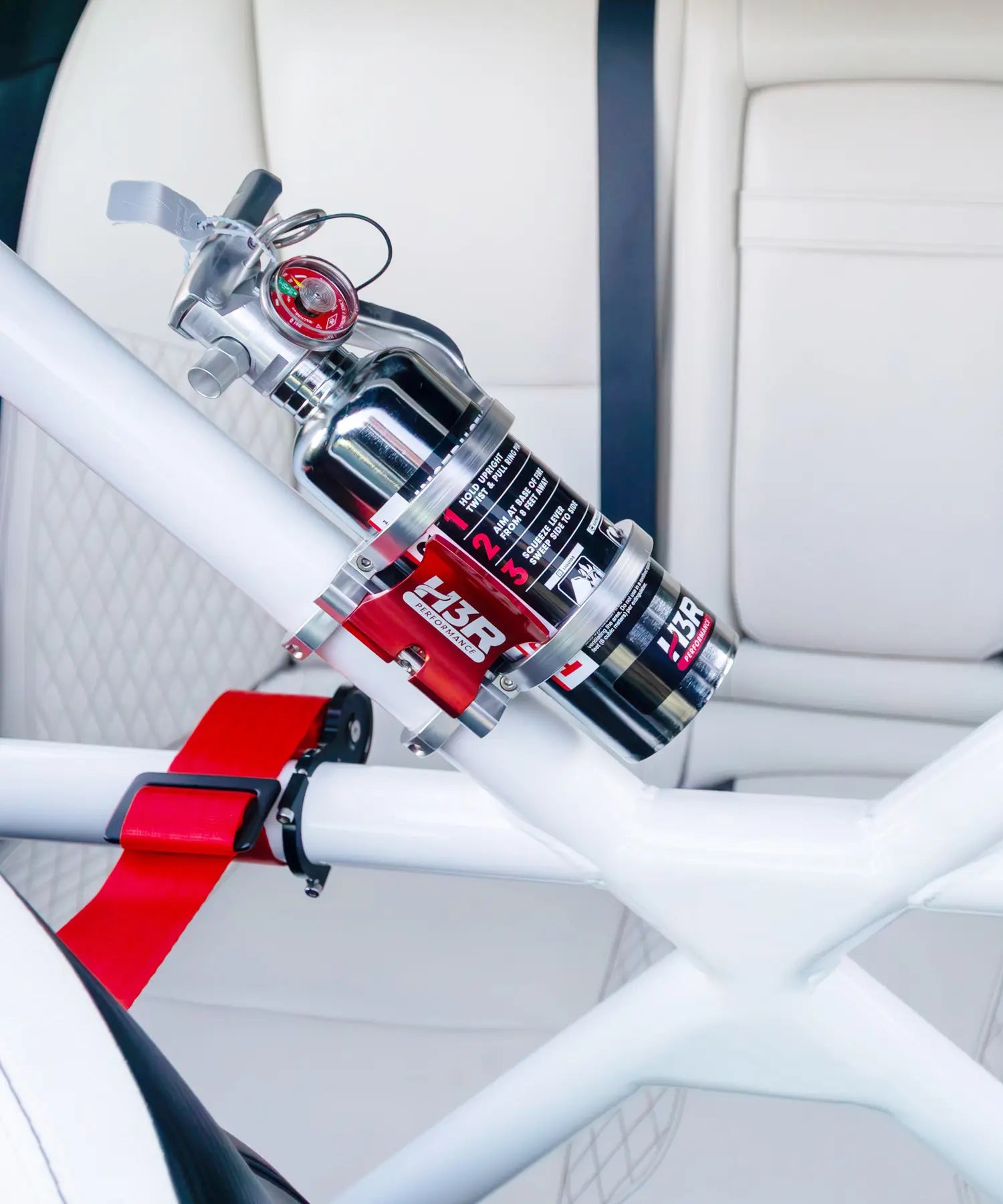

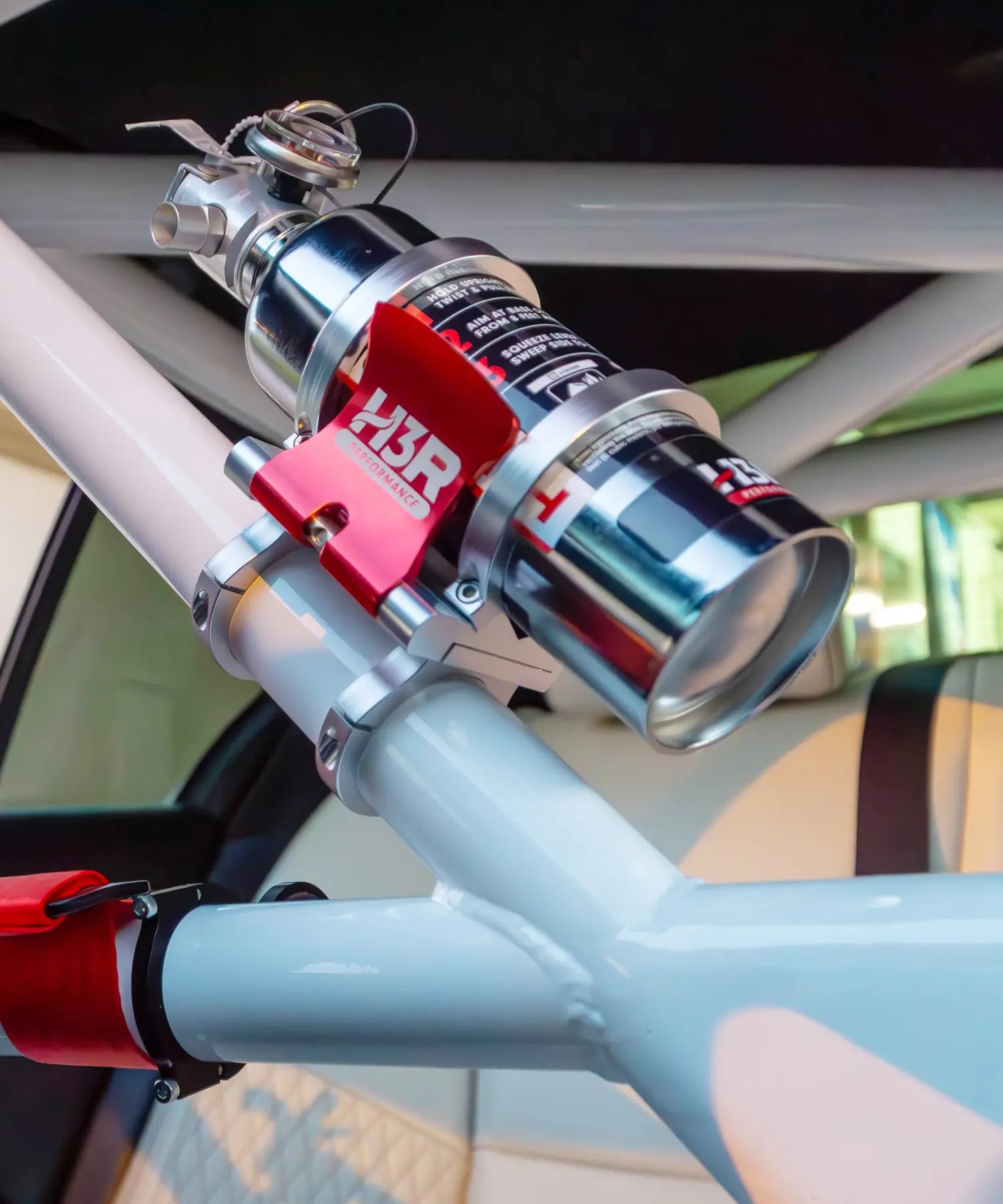

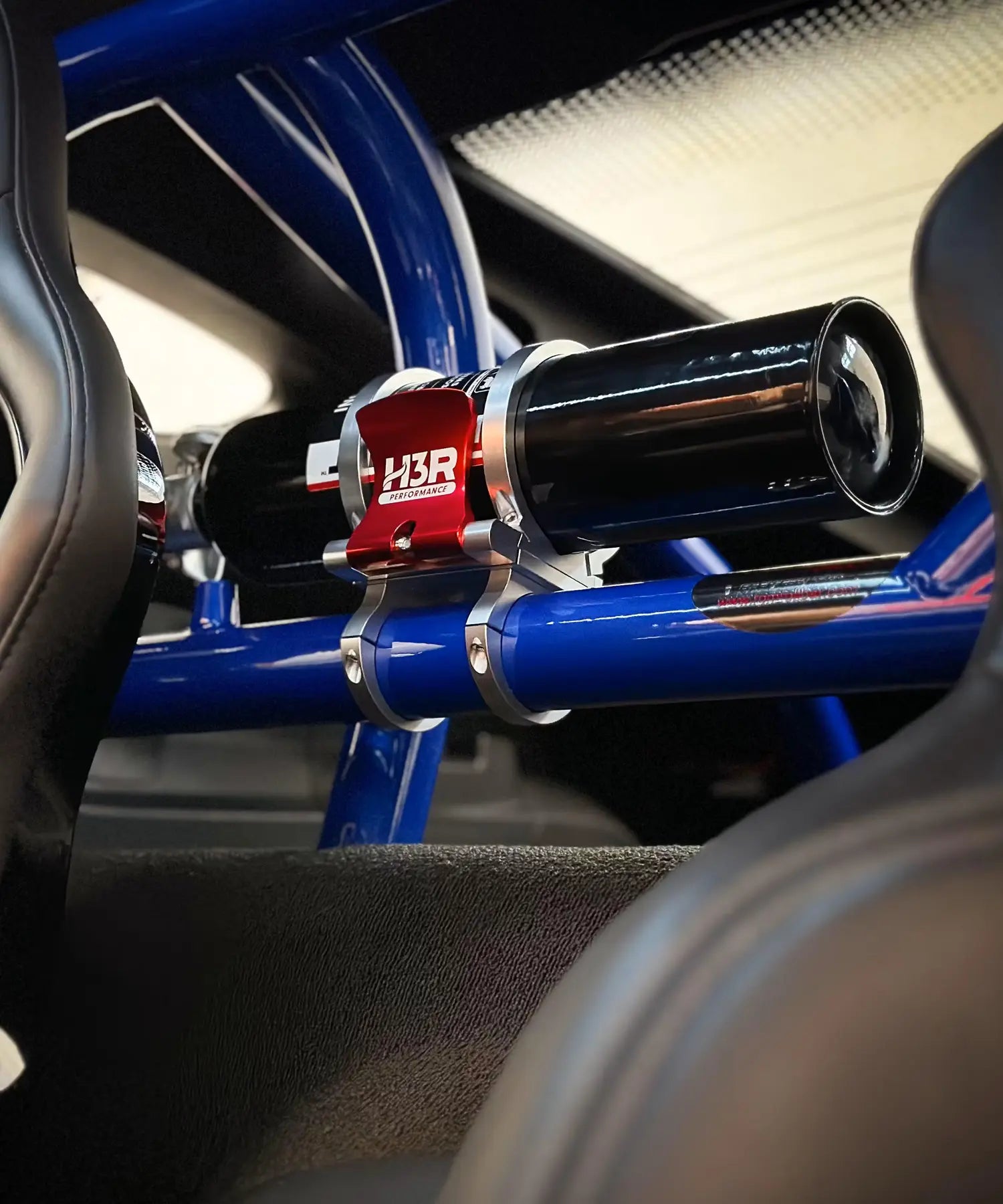

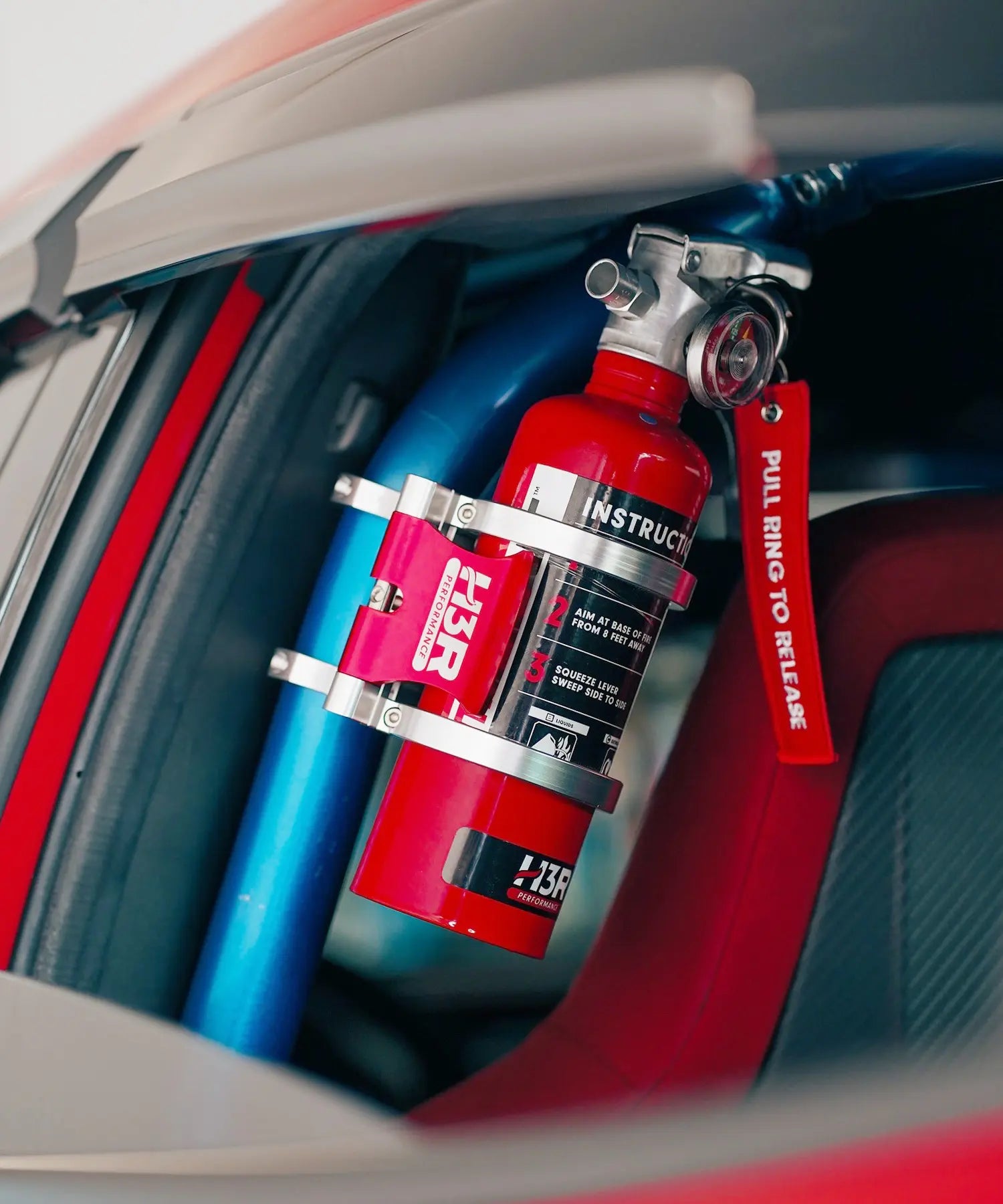

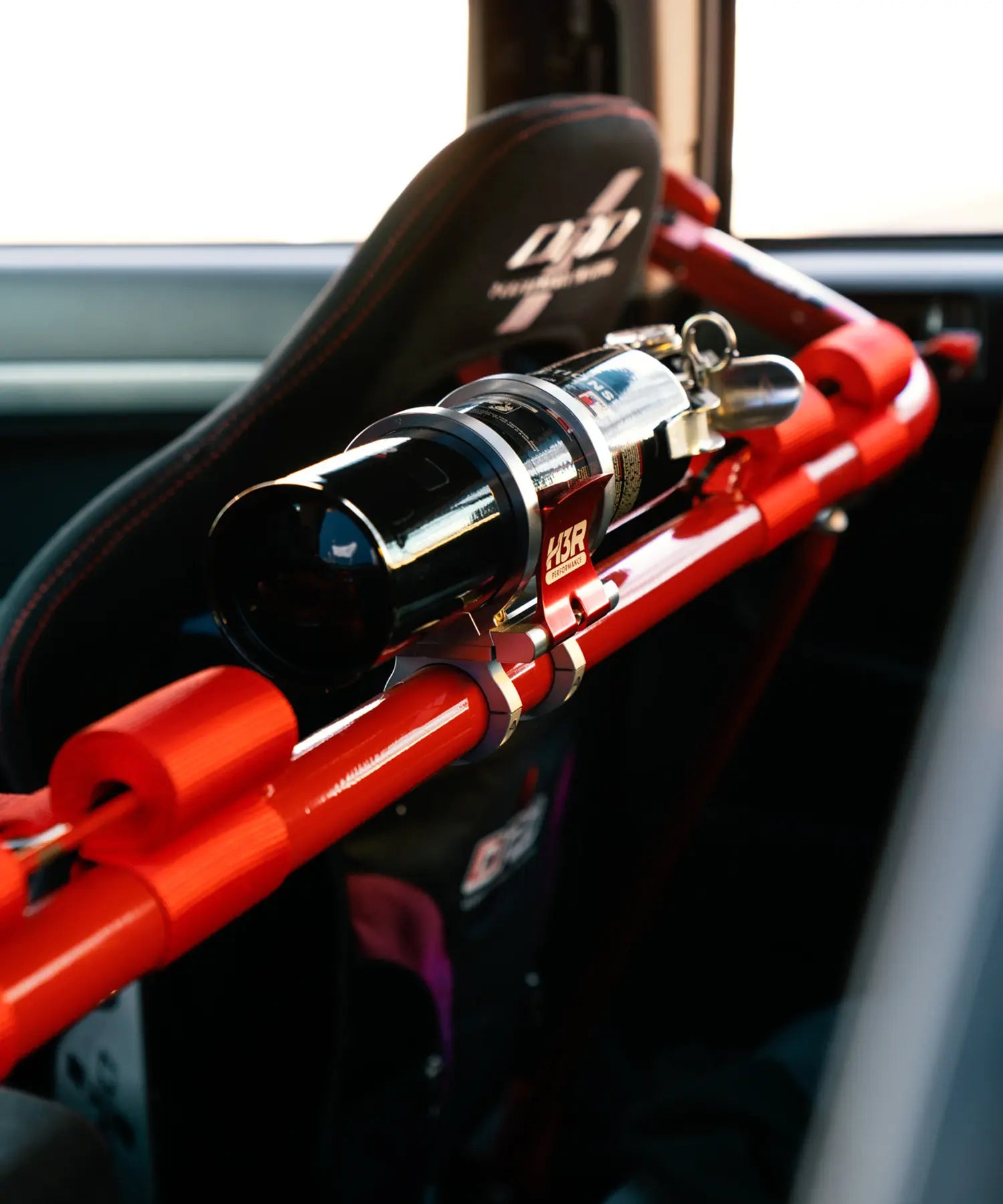

Our roll bar brackets deliver quick-release performance in a secure clamping design for roll bars from 1-1/2" to 2-1/4" in diameter. Choose the precision-machined ProLock for a clean, secure fit or the MIL-STD-810G-rated Extreme Duty for the most demanding off-road and racing applications.

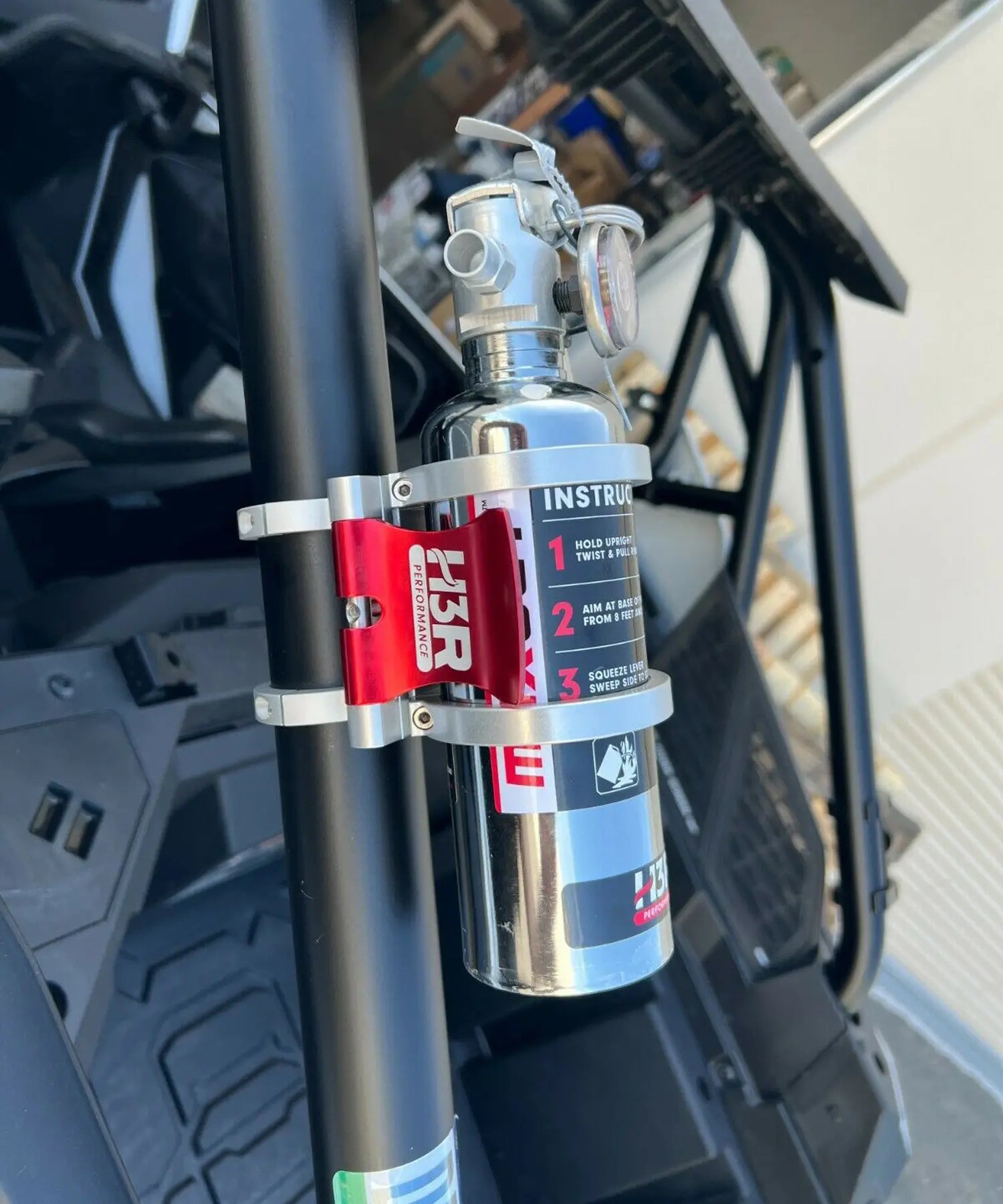

Got a side-by-side?

Find your Roll Bar mount

SIDE-BY-SIDE ROLL BAR BRACKET FINDER

Choose Your SXS

This tool covers side-by-sides only — Polaris, Can-Am, Yamaha, Kawasaki, and Honda. Select your model year, then your vehicle, to see exactly which H3R bracket fits your factory roll bar.

⚠

Always confirm with digital calipers before ordering. This guide reflects published/measured OEM tube sizes — individual vehicles and aftermarket cages can vary slightly.

1Model Year

2Vehicle

Only Have a Tape Measure?

Wrap a tape measure around your roll bar to get the circumference (the distance all the way around). Enter it below and we'll convert it to diameter — the number you actually need to pick a bracket.

Circumference

Unit

Diameter

—in

Diameter

—mm

Good to Know Before You Order

Extreme Duty brackets only come in 1-5/8" and 1-3/4", and only fit 2.5 lb / 5 lb extinguishers.
ProLock brackets cover the full range: 1-1/2", 1-5/8", 1-3/4", 2", and 2-1/4".
Tags mean: Confirmed Fit — exact OEM match. Verify Before Install — closest available size, confirm with calipers. No Match — no current H3R bracket fits this member. Measure Required — published specs vary, confirm before ordering.
Don't size a bracket up or down as a substitute — a bracket that's too big or too small won't hold securely. Order the exact size your roll bar measures.
Don't see your vehicle, or not sure which size you need? Contact our team — we're happy to help you get it right.

FAQ

What's the difference between ProLock and Extreme Duty roll bar brackets?

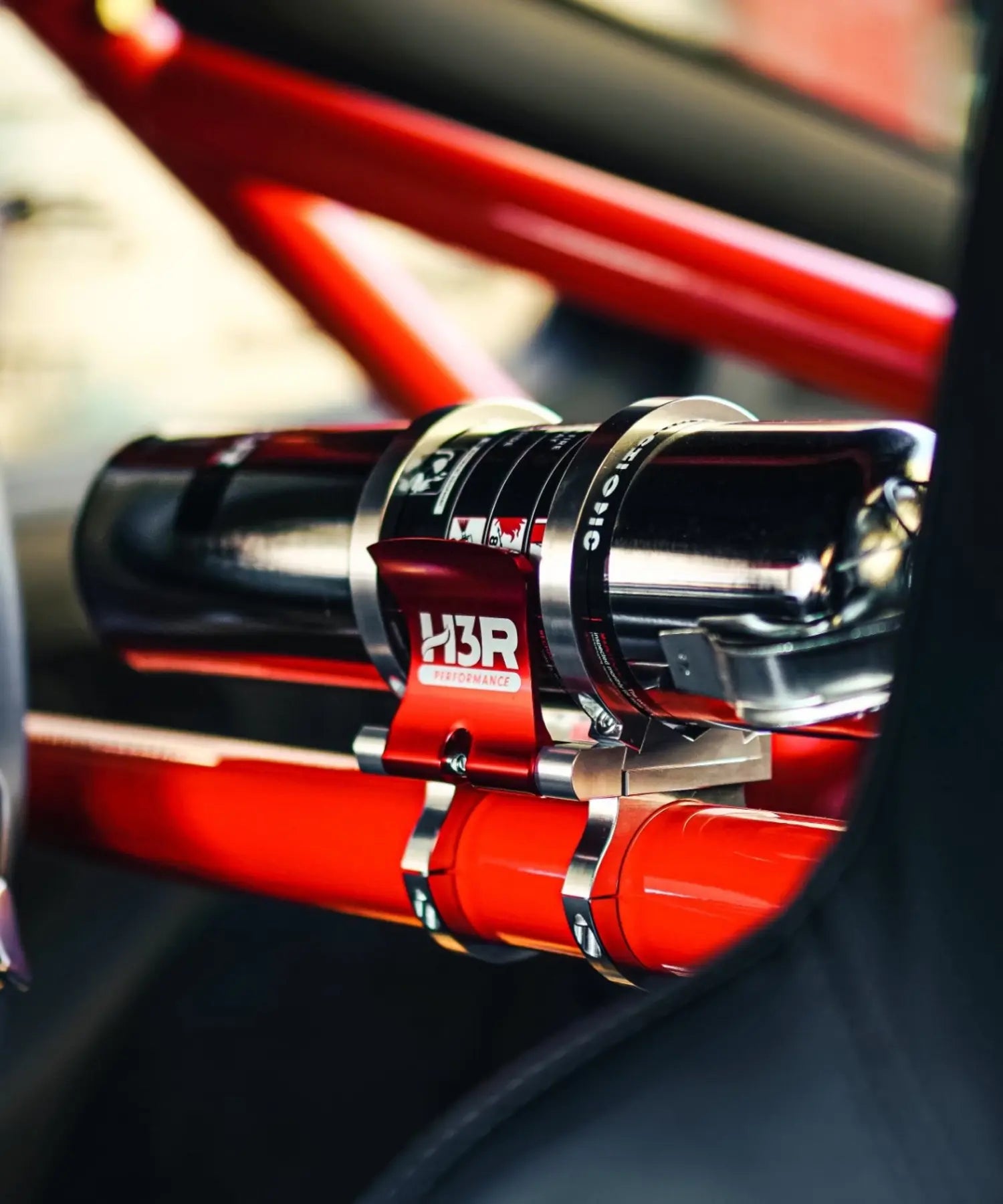

The Extreme Duty bracket features a pull-pin design that is both secure and allows quick disengagement while minimizing the risk of accidental release. This design has earned acceptance for use in the NHRA Championship Drag Racing Series. The ProLock bracket uses a unique lever-action locking/release mechanism that is easier to actuate in tight spaces than pull-pin designs, providing an exceptionally secure, rattle-free mounting solution for demanding vehicle applications. While the Extreme Duty is only available in the most popular 1-5/8" and 1-3/4" sizes, the ProLock is available for roll bars from 1-1/2" to 2-1/4" in diameter.

Is the Extreme Duty bracket made of plastic?

While it might look like plastic at first glance, it is actually made of fiberglass-reinforced nylon, a high-strength composite used in automotive, military, and aerospace applications. It is engineered to handle inertia forces exceeding 27G in all directions, making it more than capable of handling the shock loads found in serious off-road and racing conditions.

How do I find my roll bar size?

The best way to measure your roll bar is using digital calipers on a cross section of the tubing. While it is also possible to calculate the diameter from a circumference measurement using a tape measure, this method may introduce rounding errors. For the most accurate fit, we highly recommend using calipers.

My roll bar is in between sizes. Can I use a larger or smaller bracket?

We advise against it. Using a bracket that is larger than your tubing is not practical, as only a professionally machined metal shim with dual collars would provide a secure fit given the weight of the fire extinguisher assembly. A bracket that is too small, on the other hand, would create too much gap between the clamps and place excessive strain on the fasteners. Also worth noting: metric tubing sourced from overseas commonly falls between SAE standard sizes, which can prevent our brackets from fitting correctly. If your roll cage uses imported metric tubing, a seat mount or other alternative may be a better fit.
