SM01BK - Fire Extinguisher Seat Mount
SM01BK - Fire Extinguisher Seat Mount
H3R Performance Headquarters
103 H St
Petaluma CA 94952
United States
Our fully adjustable NHRA-accepted fire extinguisher seat mount installs easily in many (though not all) vehicles, attaching to the seat rail bolts or above the slider of the driver or front passenger seats.* Not only does this put the extinguisher at your fingertips, but it avoids the need to drill mounting holes into your vehicle.

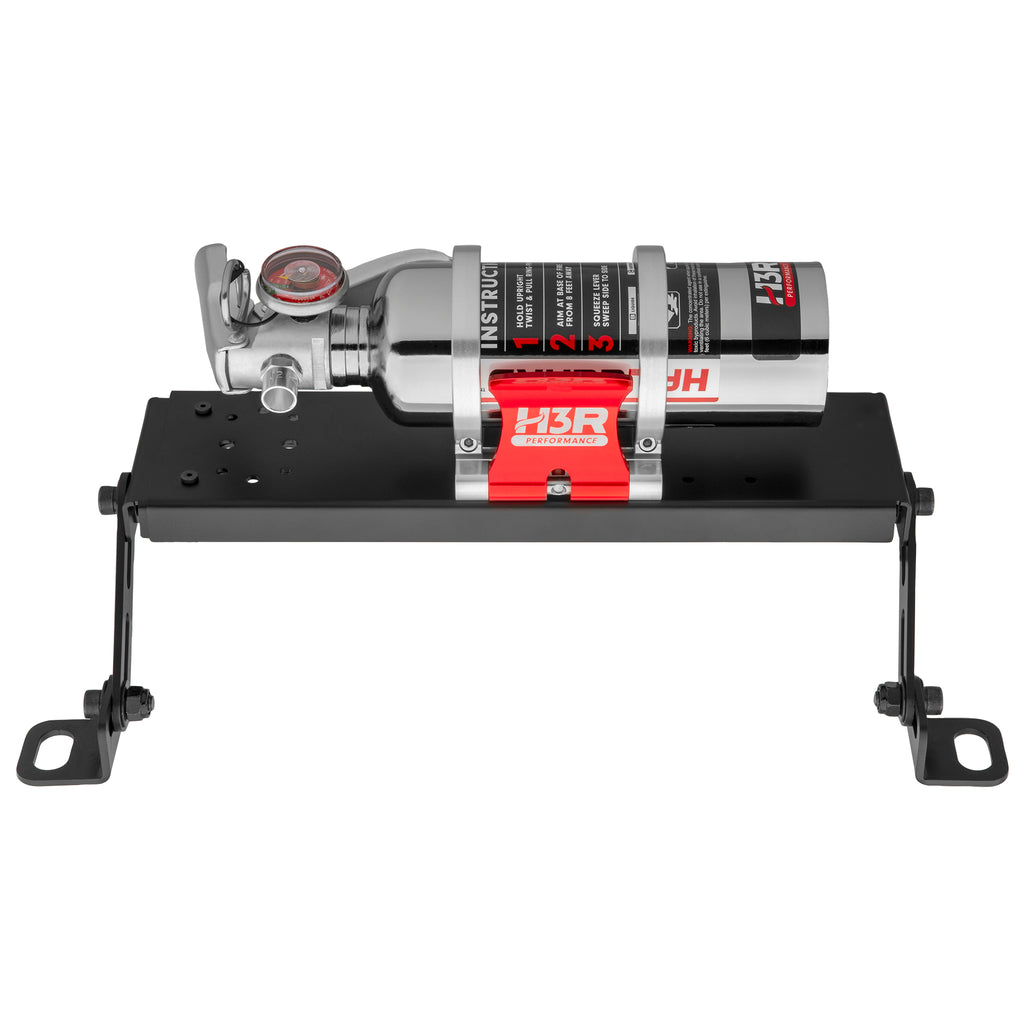

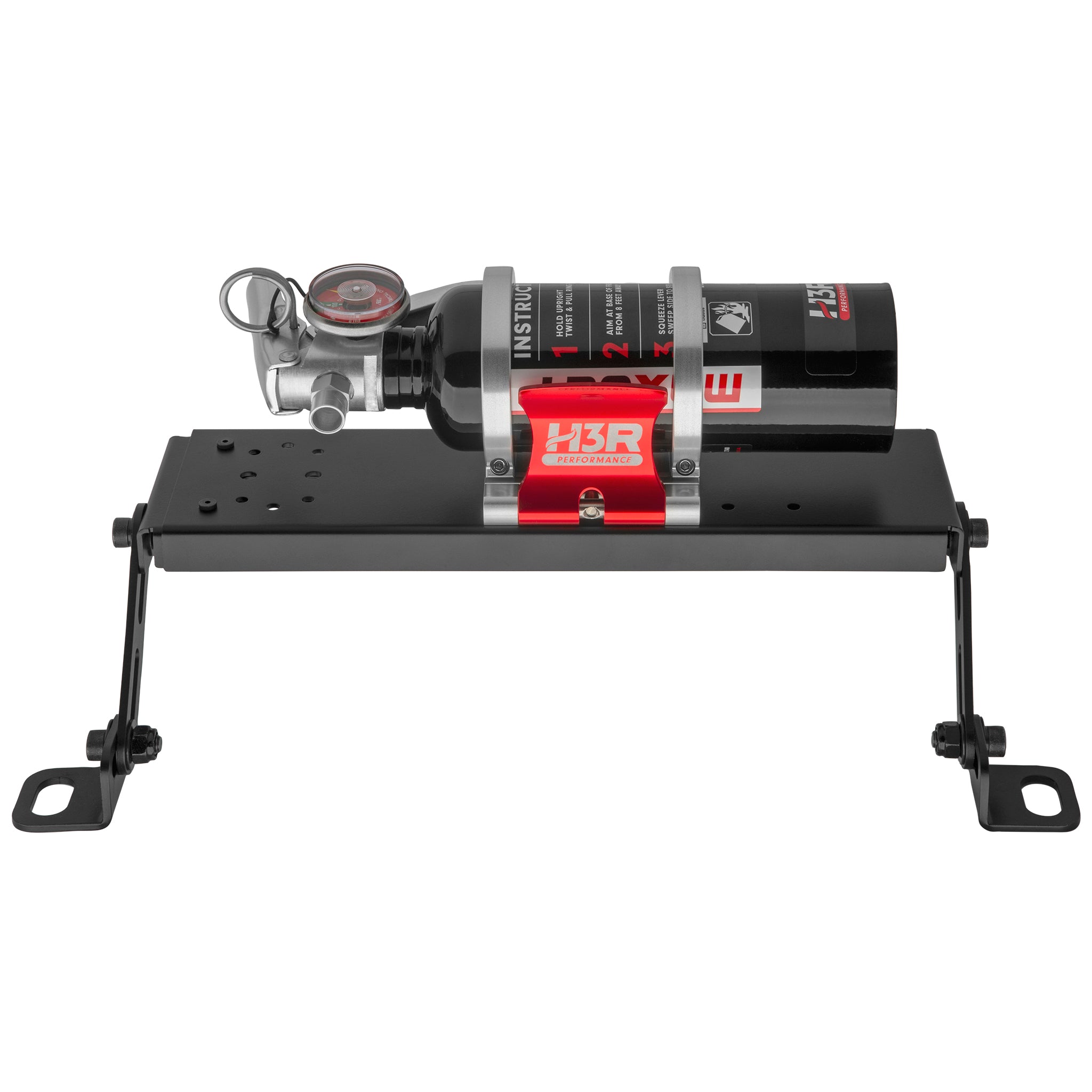

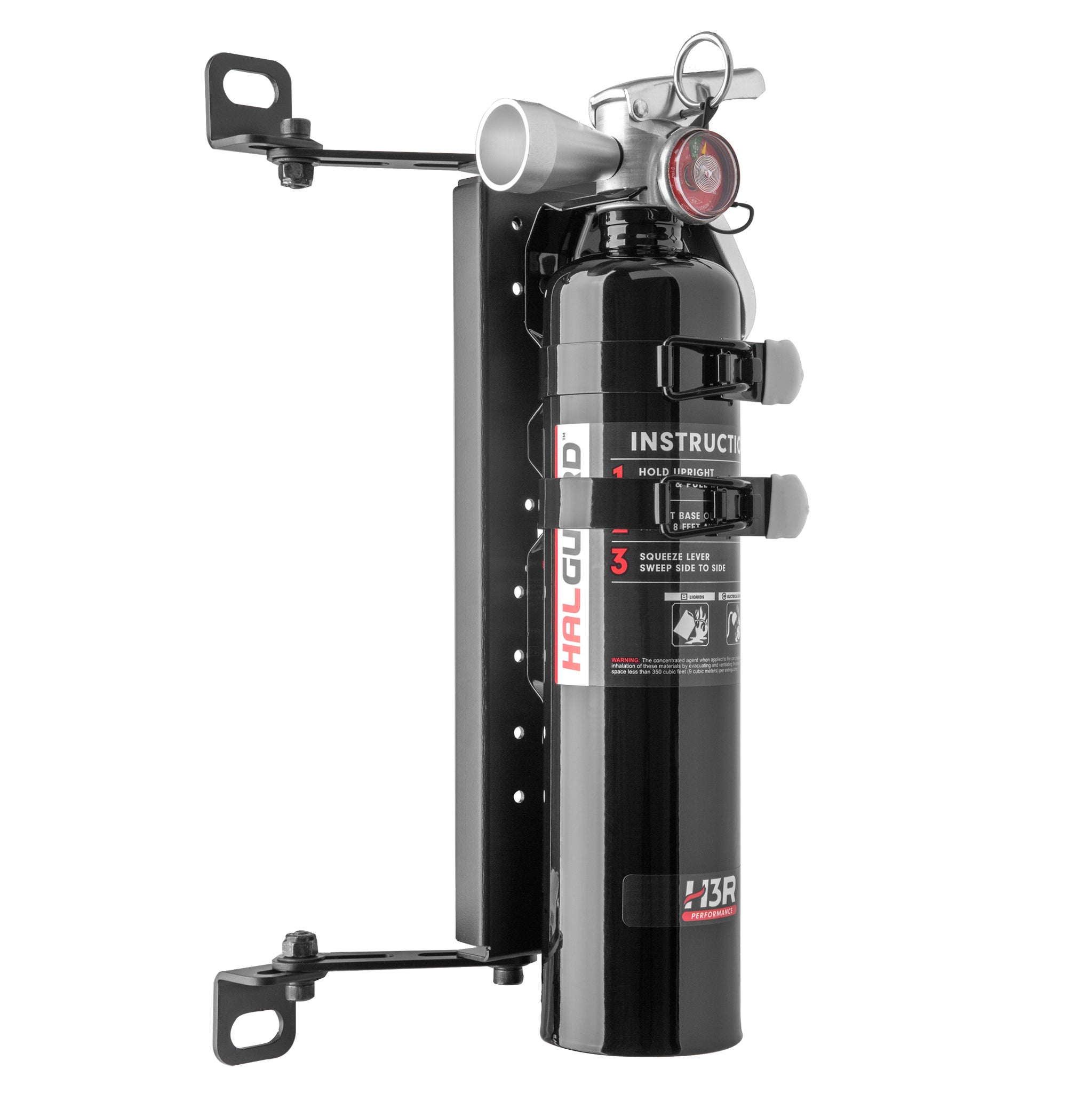

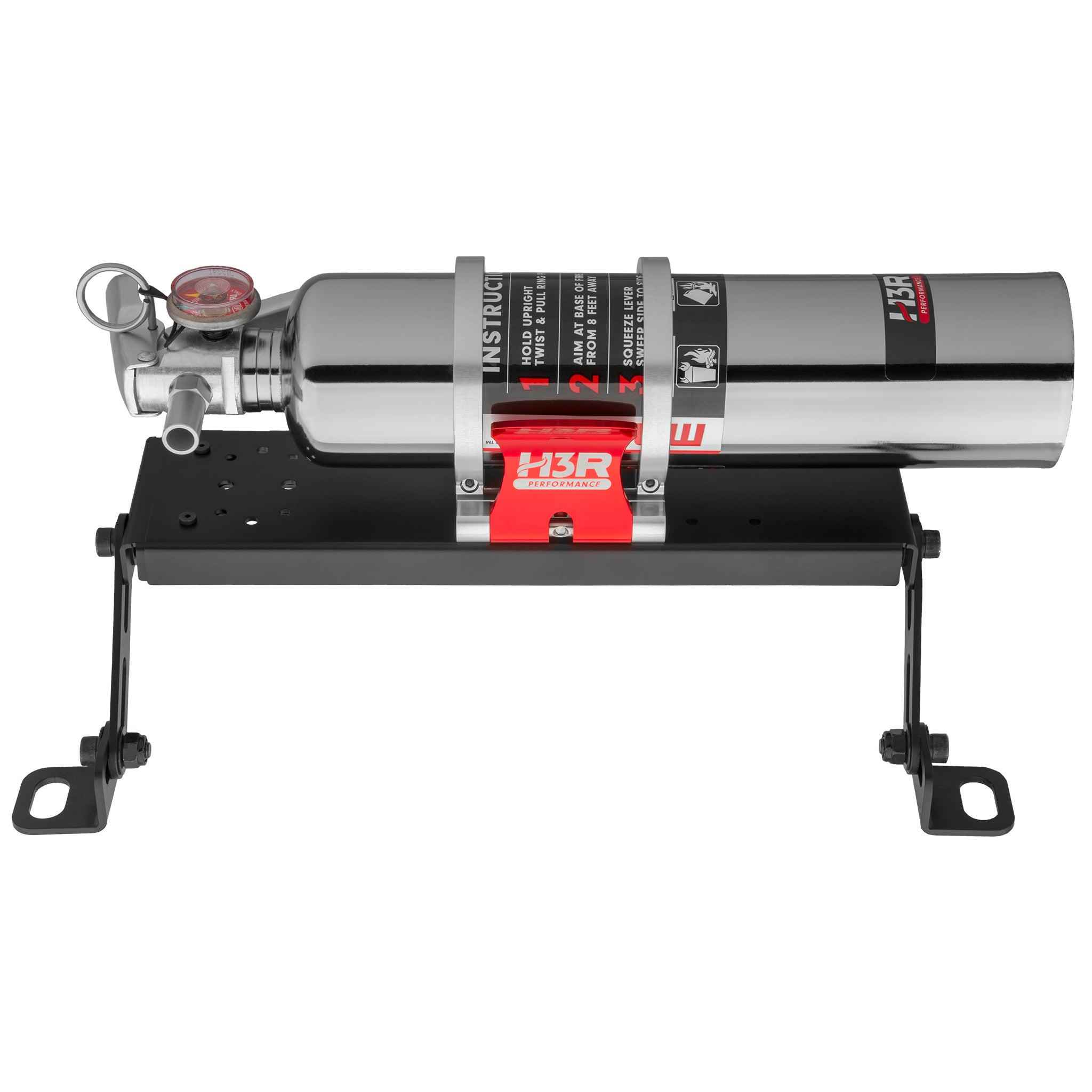

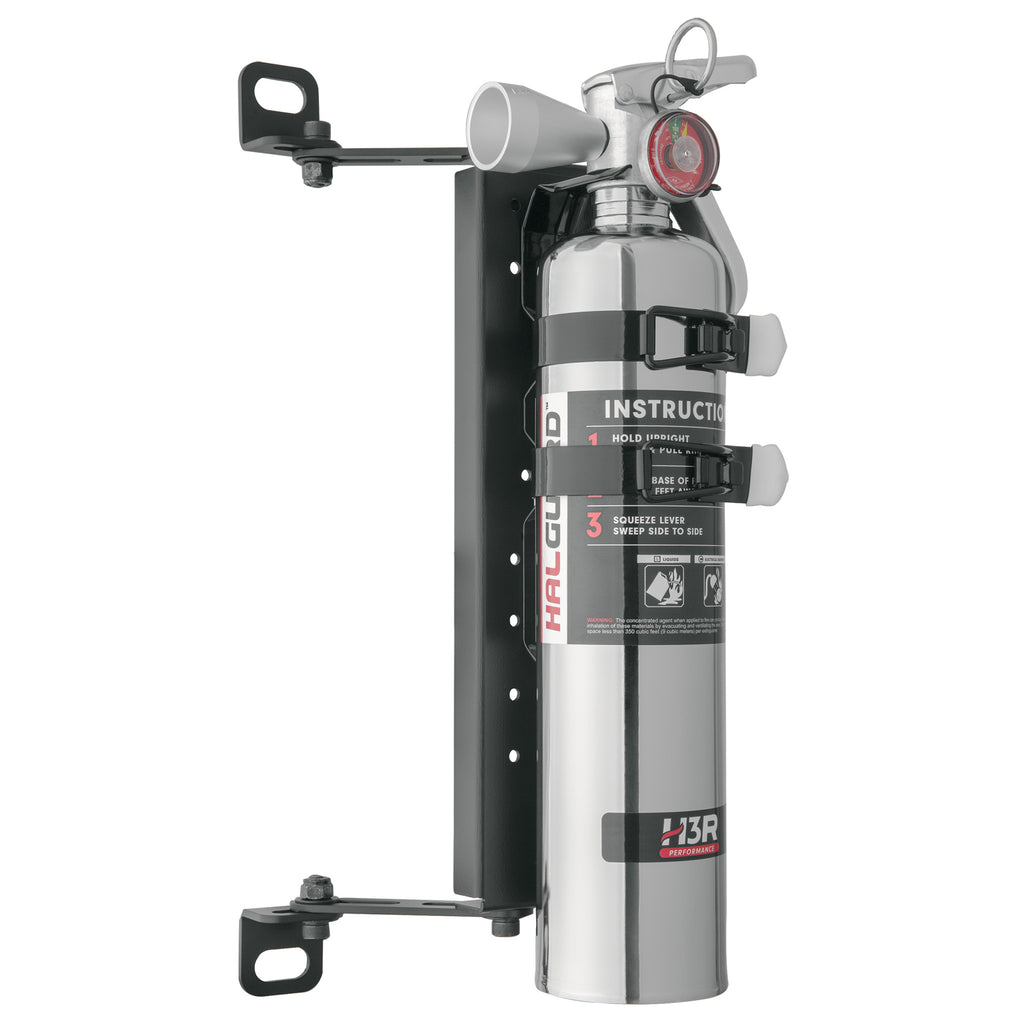

Featuring lightweight, durable aluminum construction and black powder coat finish, this patented mount accepts H3R Performance ProLock, Extreme Duty, and standard brackets for 1 lb. to 5 lb. extinguishers.

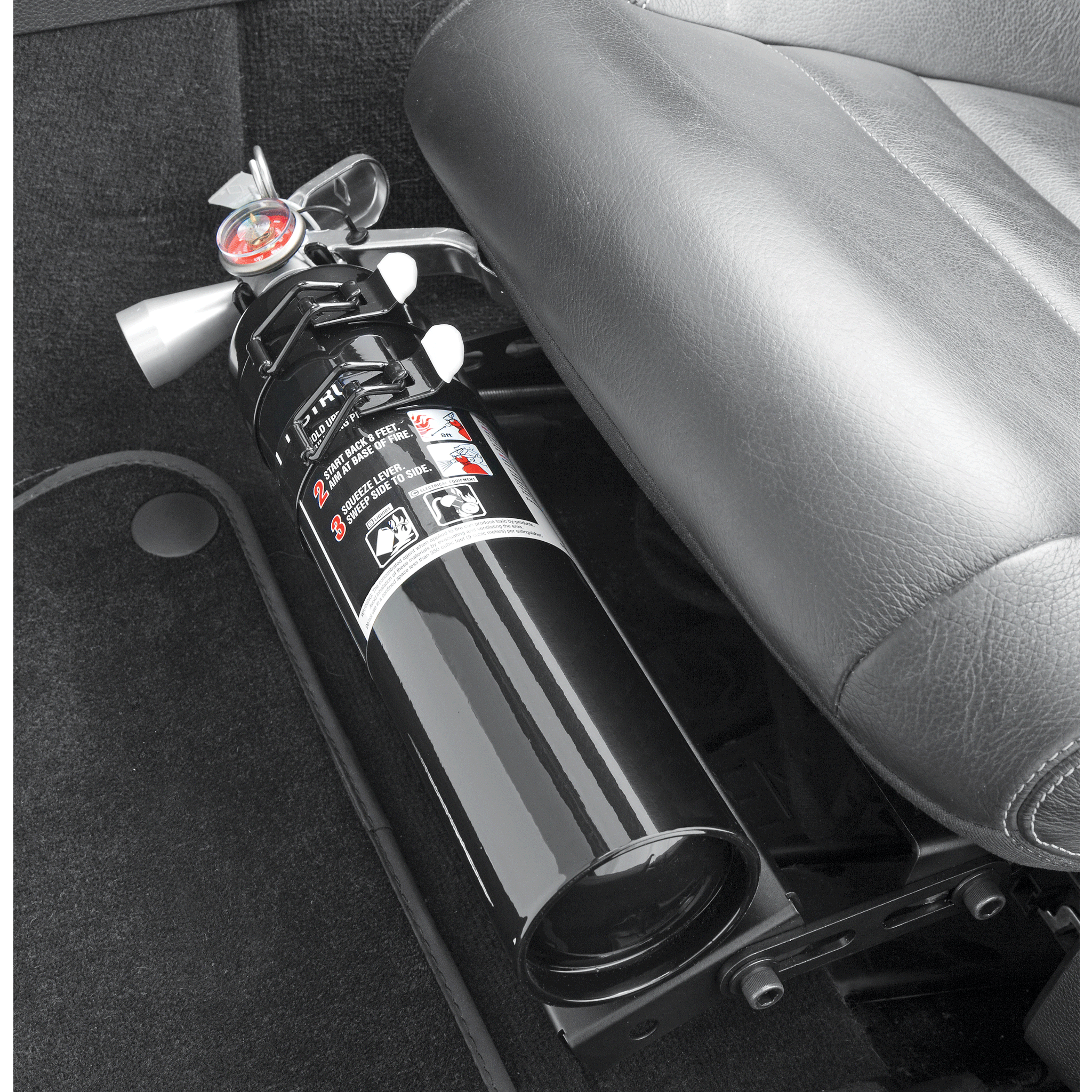

The black powder coat finish SM01BK is designed to attach to the seat rail bolts or above the slider of the driver or front passenger seats.* This puts the extinguisher at your fingertips and avoids the need to drill mounting holes into your vehicle.
Note: Ships to contiguous US only. No overnight/expedited/air shipping.
- Places extinguisher within driver's reach
- Accepts H3R Performance standard brackets (included with extinguisher), as well as ProLock and Extreme Duty brackets (available for purchase separately).
- Easy to install - no drilling required
- Attaches to seat rail bolts or seat slider*
- Fully adjustable
- Accommodates mounting holes 8 7/8" - 19 1/4" apart
- Lightweight aluminum construction
- Made in U.S.A.
- One year limited warranty
WARNING: Cancer - www.P65Warnings.ca.gov
Customer Reviews

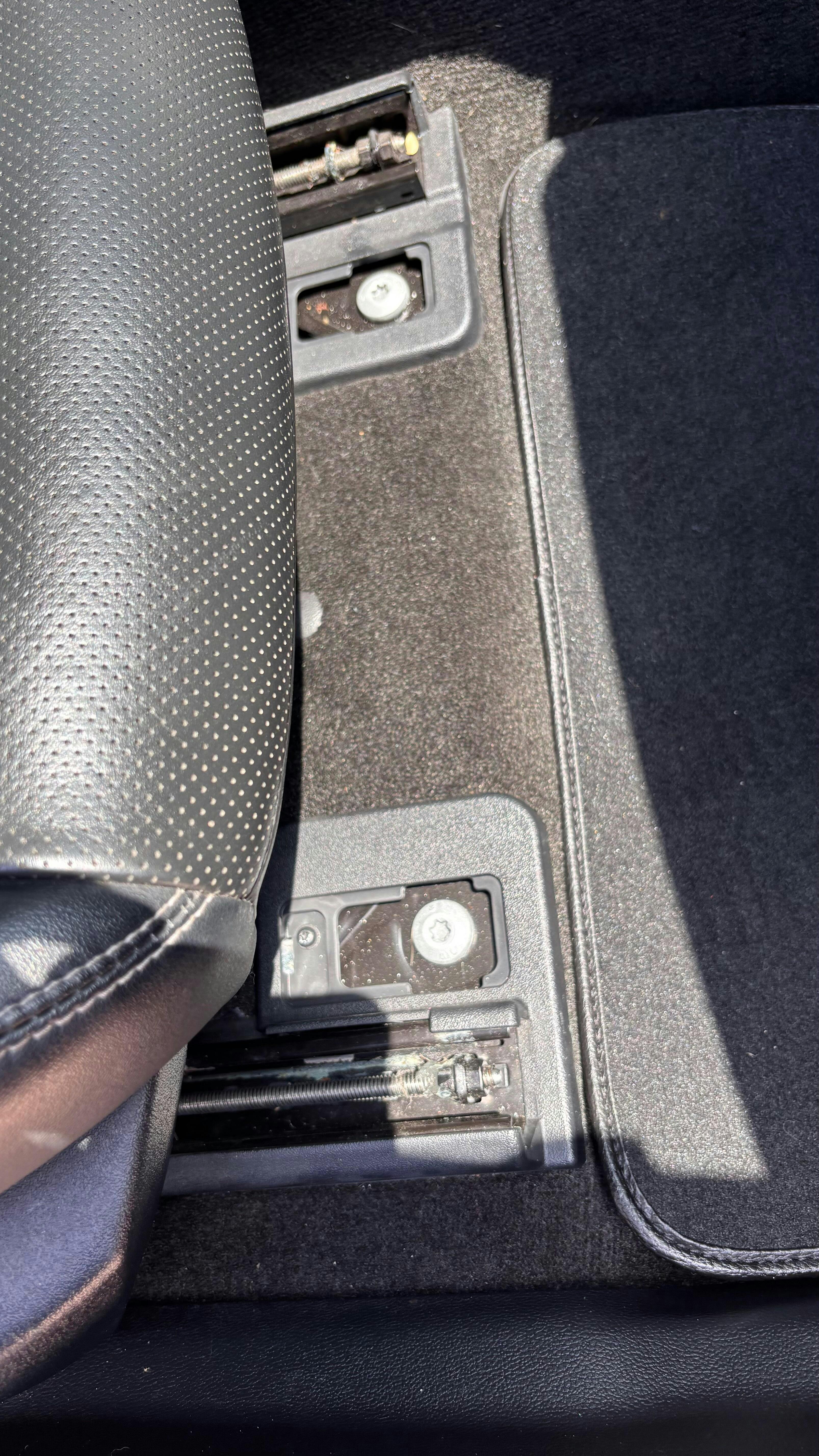

Supplied brackets are not correct for 2018 Mustang GT Premium
Hi Christopher,
Thank you again for your call yesterday regarding the SM01BK and the fitment issues with your 2018 Mustang GT Premium.
We do have an in-depth installation guide available for the SM01BK on the 2018+ Mustang, which involves a slight modification to the seat's plastic trim. You can view that guide here: https://www.h3rperformance.com/pages/ford-mustang-shelby-gt500-fire-extinguisher-installation
As we discussed, we've sent out our Ford-specific seat mount, which is designed to work seamlessly with 2018+ Mustangs and should be a perfect fit for your vehicle.
We truly appreciate your support of our brand and products, and thank you for taking the time to find the best solution for your setup.
Best regards,
H3R Performance
Did not come with all the hardware. Instructions were unclear with the actual product I ordered.
Hello Josh,
Sorry to hear about the missing hardware in your bracket! We have emailed you asking what hardware you were missing so we can resolve this issue ASAP for you. :)
Best regards,
H3R Performance

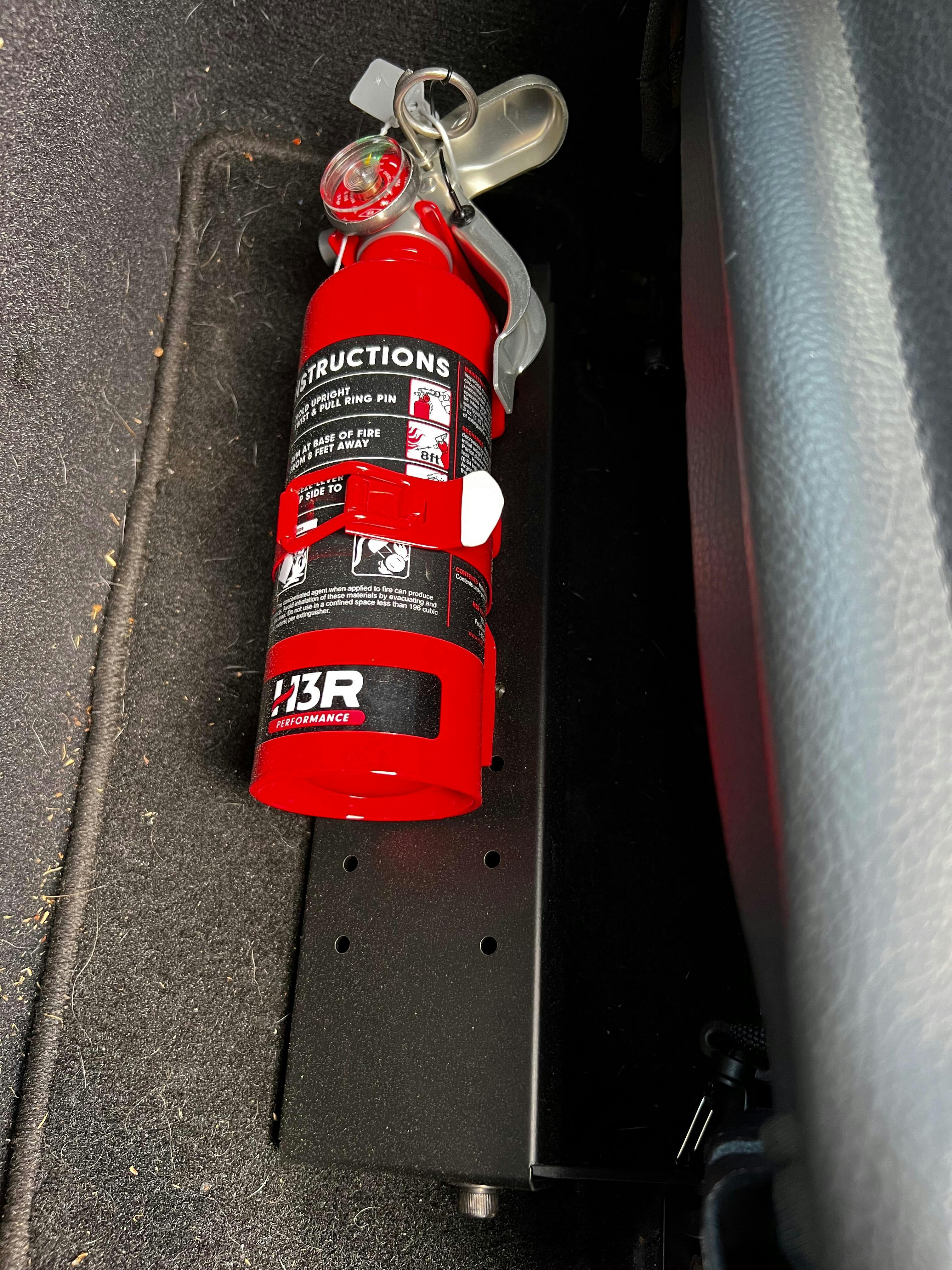

Also great quality and totally necessary to mount the extinguisher behind the seat on the floor. Excellent quality and I bought a second one so no regrets as the quality is top notch.
Hello Chris,
Thank you so much for your 5-star review of our SM01BK. We are happy to hear you appreciate the quality and usefulness of the SM01BK, we couldn't agree more that is it necessary!
Best regards,
H3R Performance
The mount is able to be setup on a 08 mustang GT for the front or rear seat, adjustable as necessary and overall fit and finish is excellent.
Luis,
Thank you for your 5-star review and great pictures of your install!
That is a very clean and out of the way, but easily accessible installation. :)
Best regards,
H3R Performance
Worked great. Small adjustment to the brackets and it was installed into a Porsche 911
Application list
We have compiled the following application list based on the feedback we received from our customers.
- Giulia Quadrifoglio (2016–present) See images
- A4 (2012-2015) No fitment, contact us
- R8 (2006-2015) See images and notes
- Avanti Convertible (1988) See images
- 02 Series (1968-1975) See image
- 4 Series (2013-2020) See images
- M2 (2015-2021) See video
- M3 (2014-2019) See video
- M4 (2014-2020) See image
- CTS-V (2016-2019) See image
Camaro
- 1966-1969 - Sparco seats restrict forward seat motion
- 2016-2023 See image
Chevelle
- 1966 See image
- 1968-1972 See images
Colorado
- 2015-2022 No fitment
Corvette
- 1953-1962 (C1)
- 1968-1982 (C3) See images and notes

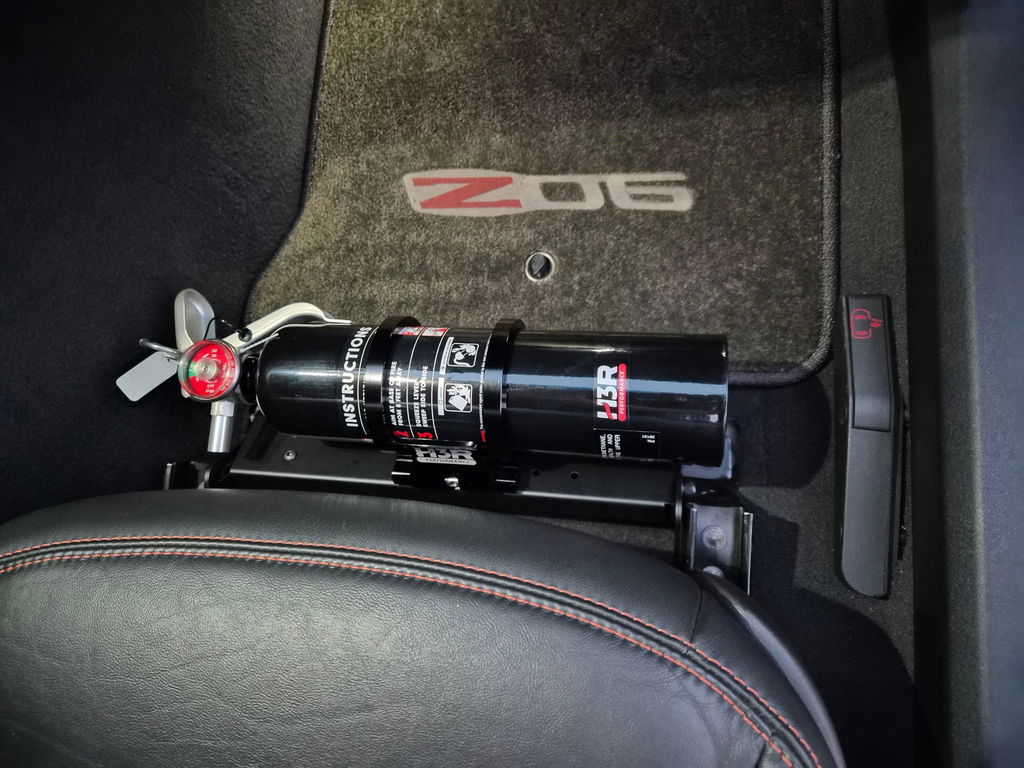

- 2005-2013 (C6) See installation guide
- 2014-2019 (C7) Image 1, image 2, and video
- 2020-2023 (C8) See image
Impala
- 2006-2016 See images and notes
Silverado
- 2007-2015 2500HD See image
SS
- 2014–2017 See images
- Challenger SRT Hellcat (2015-2023) No fitment, contact us
- Charger (1968-1970) See image
- Dakota (2005-2011)
- Dart (1967-1976) See image
- Viper (2003-2006) See image
- F430 (2005-2010) Install mounting tabs underneath
the seat rails. Cannot be combined with the factory seat rail covers. See image.
500 / 500 Abarth
- 2012–2019 See image
Bronco Raptor
- 2022-2024 Installs on rear sports bar (see image)
F-150 (2010–2014)
- Floor install (see image)
- Seat install (see fordraptorforum.com)
Falcon Futura Sports Coupe
- 1965–1970 Requires additional holes in seat mount base (see image)
Focus/ST
- 2012-2018 To ensure a proper fit under the seat rail, drill out the "Large
Mounting Tabs" to line up with the seat rail mounting holes. (see image)
Mustang
- 1965-1973 See images
- 1979-1993 See installation guide
- 1993-2004 See image
- 2005-2014 See image

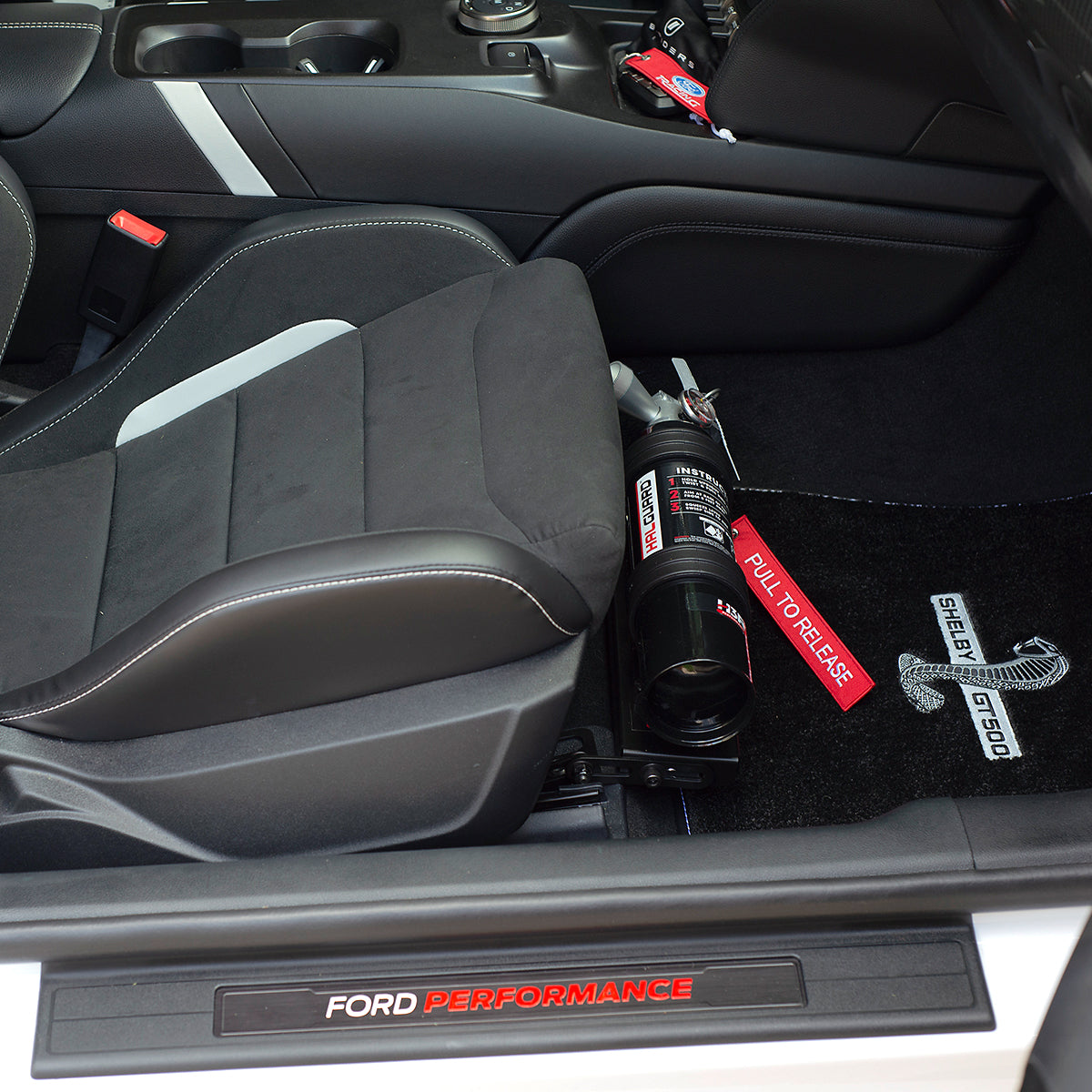

- 2007–2009 Shelby GT500 See images
- 2015-2023 See images
- 2015-2020 Shelby GT350/R See image and video
- 2021-2022 Shelby GT500 See images
- 2021-2023 Mach 1 See image
Ranger / Ranger Raptor
- 2019-2023 Use Kap Industries bracket
- 2024-Present See image, installed with Kap Industries bracket
- Veloster N (2019-2022) See video
- Grenadier (2024-Present) No Fitment
- G35 (2003-2007) See images
Cherokee
- 1984-2001 See images
Grand Cherokee
- 1993-1998 Image 1, Image 2
- 2005-2010 See images
Wrangler
- 1996-2006 (TJ)
- 2007-2018 (JK) Option 1 - Behind the front seats. Option 2 - Requires modification of the Seat Mount parts.
- 2018-present (JL) See images
- IS F (2008-2009) See images
- Lexus LX 570 (2015–2021) See images
- GranTurismo (2007-2019) See images
- 3 (2019-present) See image
- CX-5 (2013-2016) See installation guide and video
Lancer Evolution X
- 2008—2015
- 240SX (1989-1994) See images
- 350Z (2002-2009) Requires an additional extension arm - see image
911
- 1963-1973 Installation restricts forward/backward seat movement, see image
- 1974-1989 Installs behind the front seat, see image
- 2012-2019 Installs behind the front passenger seat by sliding large mounting tabs under the seat rail.
912
- 1965-1969 See images
914
- 1969-1976 Requires additional hardware, see image
- BRZ (2012-2016) See image
- Outback (2005-2009) See thread on www.subaruoutback.org
Impreza/WRX
- 2007-2014
WRX
- 2015-2021 (with BRIDE LOW MAX seats) See images
- 2022-present - No fitment (including power RECARO seats)
4Runner
- 2003-2009 Installs behind the front seats, see image
- 2010-2024 See blog post, watch install video
Camry
- 2012-2017 See image
FJ Cruiser
- 2007-2014 See images

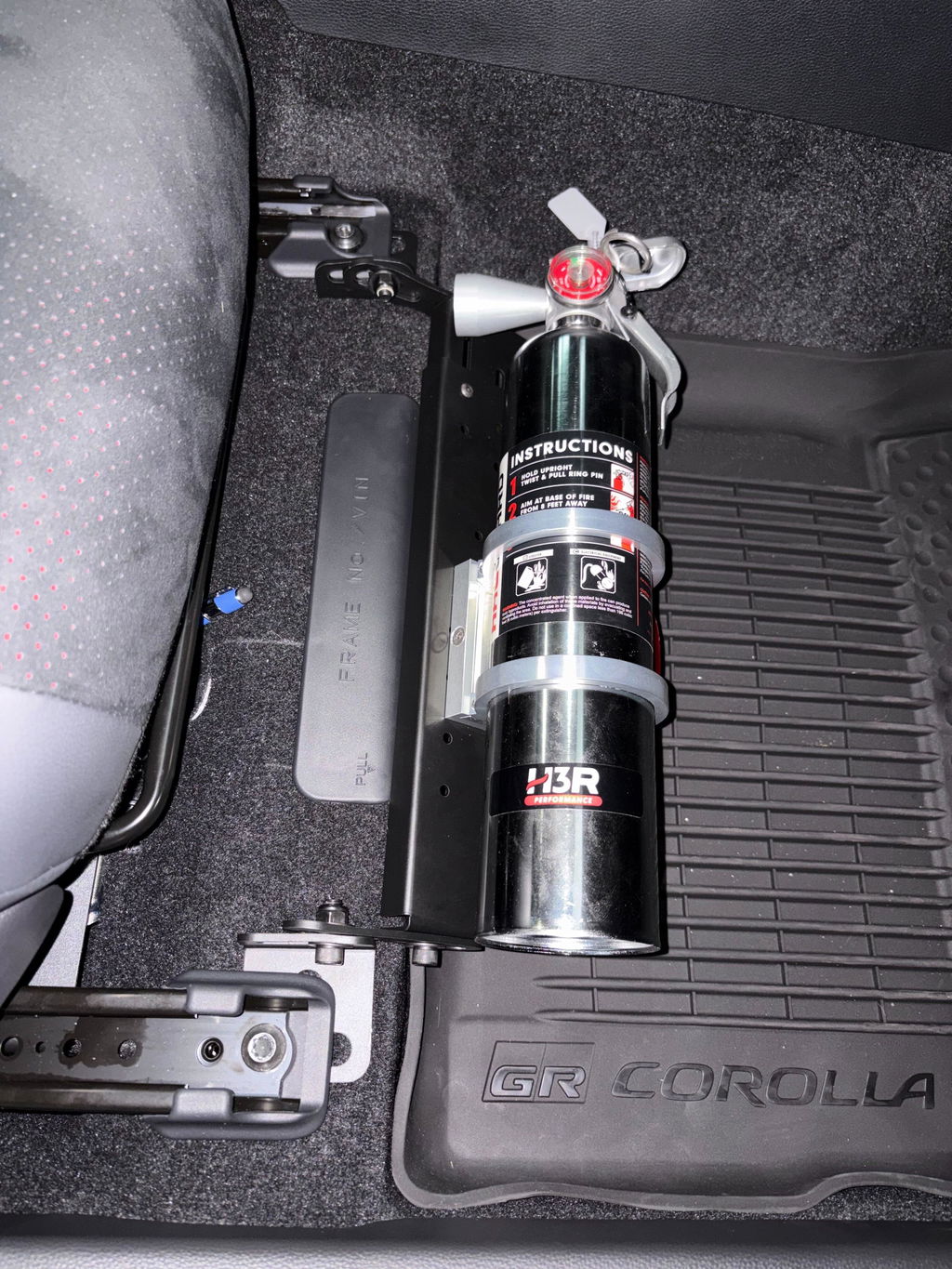

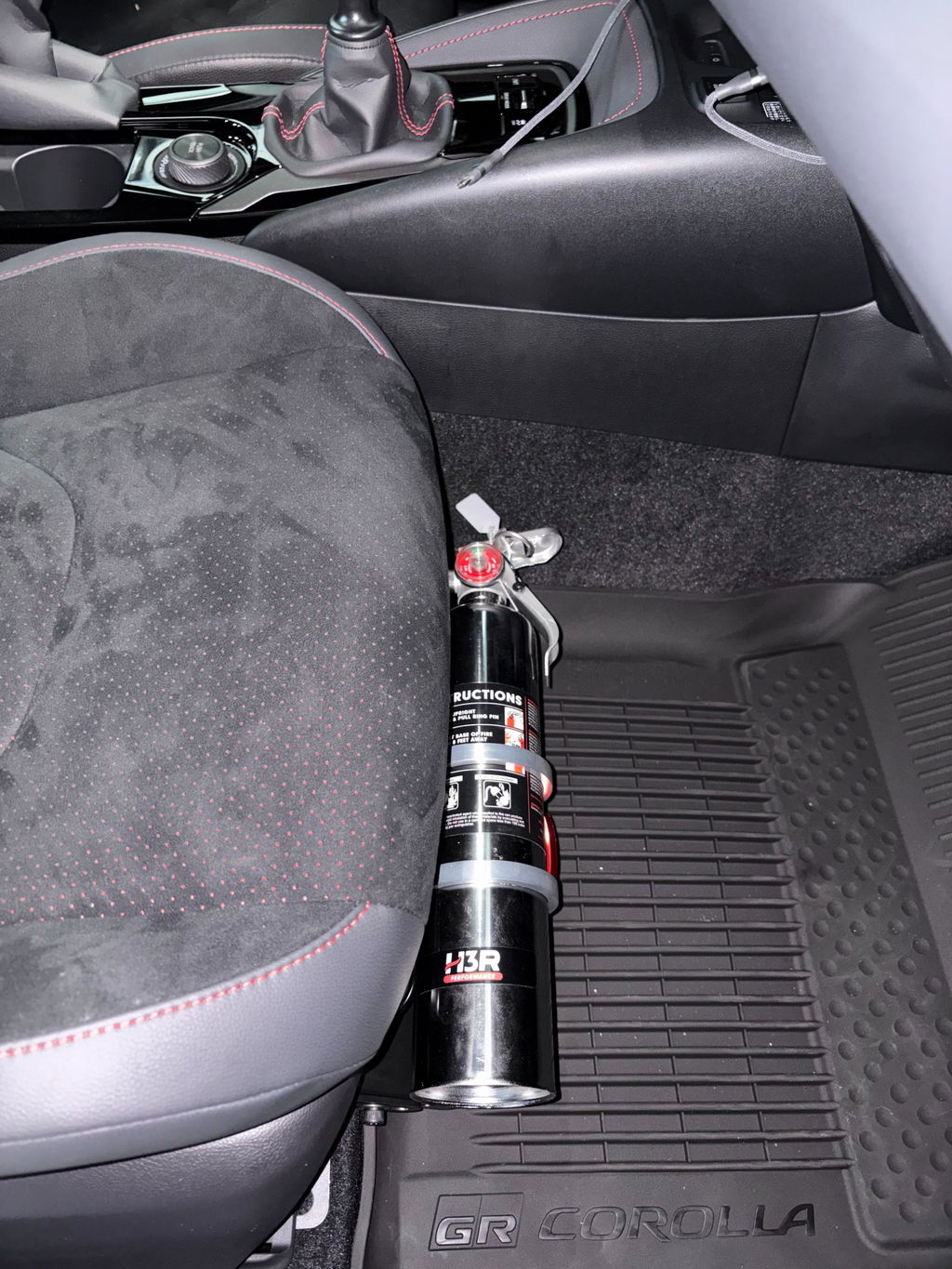

GR Corolla
- 2023-present See image
GR Supra
- 2019-present See installation video
Supra
- 1994-1998 No fitment, contact us
Land Cruiser
MR2
- 1985–2007 See image
Pickup
- 1988-1995 See image
Tacoma
- 2016-2023 See video, See image
Tundra
- 2000-2006 See image
- 2014-2021 See images
- FR-S (2012-2016) See image
